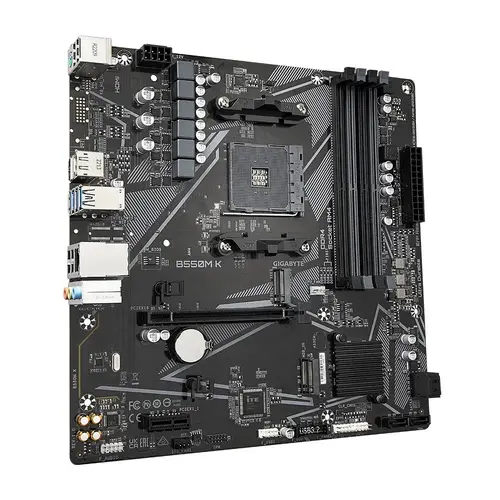

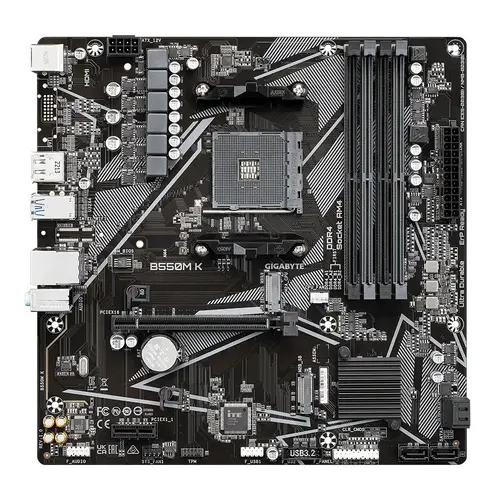

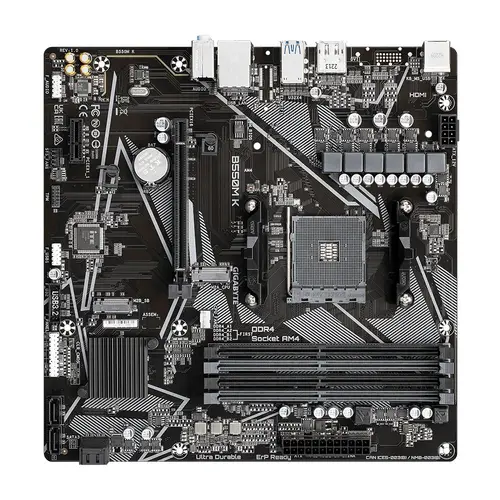

Name: Дънна платка, GIGABYTE GB B550M K /AM4
Brand: GIGABYTE
SKU: B550M K 1.0
Price: 76.08 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

GIGABYTE

Цена

€76⁰⁸ / 148⁸⁰ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 10€

+2 години: + 15€

Код: B550M K 1.0
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.gigabyte.com/Motherboard/B550M-K-rev-10/sp#sp

Graphics

Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Chipset

AMD B550

Expansion slots

1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode

1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10

Memory type

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC memory (ECC mode) support varies by CPU

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Rear panel I/O

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Lan

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

Micro ATX Form Factor

24.4cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.gigabyte.com/Motherboard/B550M-K-rev-10/sp#sp
Chipset	AMD B550
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Memory type	Dual channel memory architecture
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory type	Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Memory type	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
Memory type	* ECC memory (ECC mode) support varies by CPU
Form Factor	Micro ATX Form Factor
Form Factor	24.4cm x 24.4cm
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Rear panel I/O	1 x PS/2 keyboard/mouse port
Rear panel I/O	1 x HDMI port
Rear panel I/O	4 x USB 3.2 Gen 1 ports
Rear panel I/O	1 x RJ-45 port
Rear panel I/O	3 x audio jacks
Rear panel I/O	1 x DisplayPort
Rear panel I/O	4 x USB 2.0/1.1 ports
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots	AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Graphics	Maximum shared memory of 16 GB
Graphics	* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Graphics	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS	1 x 128 Mbit flash
I/O	4 x USB 3.2 Gen 1 ports
I/O	4 x USB 2.0/1.1 ports
I/O	1 x DisplayPort
I/O	1 x RJ-45 port
I/O	3 x audio jacks
I/O	1 x HDMI Port
I/O	1 x PS/2 keyboard/mouse port
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
Storage	AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
Storage	1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting PCIe 3.0 x2 SSDs
Storage	4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Connectors	1 x 24-pin ATX main power connector
Connectors	1 x CPU fan header
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x USB 3.2 Gen 1 header
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	1 x system fan header
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Connectors	1 x USB 2.0/1.1 header
Connectors	2 x M.2 Socket 3 connectors
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	AM4
Форм фактор	Micro-ATX
Чипсет	AMD B550
Тип памет	DDR4
Слотове за памет (count)	2
Максимална памет (GB)	64
M.2 слотове (count)	1
SATA портове (count)	4
PCIe x16 слотове (count)	1
Вграден Wi-Fi	Не
Скорост на LAN	1 Gbps
USB-C портове (count)	0
RGB подсветка	Не
Тегло	0.00кг

Дънна платка GIGABYTE B550M K (rev. 1.0) за AMD AM4

Изградете надежден и ефективен компютър с процесор AMD, използвайки дънната платка GIGABYTE B550M K. Съвместима е с последните процесори Ryzen и предлага стабилна производителност за игри и работа.

Ключови Предимства

Платформа AMD AM4 — Поддържа процесори AMD Ryzen 5000/4000/3000 серия.
PCIe 4.0 — Един слот PCIe 4.0 x16 за най-новите видеокарти и SSD.
Двуканална DDR4 памет — Два слота поддържат до 64 GB DDR4 RAM.
Бързо съхранение — Един M.2 слот с PCIe 4.0 x4 и четири SATA 6Gb/s порта.
Надеждност на GIGABYTE — Качествени кондензатори и усъвършенстван дизайн за охлаждане.

Технически Спецификации

Спецификация	Стойност
Сокет	AM4
Форм фактор	Micro-ATX
Чипсет	AMD B550
Тип памет	DDR4
Слотове за памет	2
Максимална памет	64 GB
M.2 слотове	1
SATA портове	4
PCIe x16 слотове	1 (PCIe 4.0)
Скорост на LAN	1 Gbps
USB-C портове	0
RGB подсветка	Не
